Automatic Self-Adhesive Labeling Machine for Round and Square Bottles with 20000 Bottles per Hour Capacity and Fully Integrated Servo Control

Product Categories
Shanghai Peiyu Packaging Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

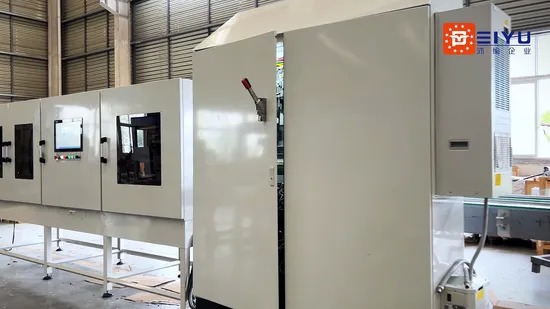

Automatic Self-Adhesive Labeling Machine for Round and Square Bottles with 20000 Bottles per Hour Capacity and Fully Integrated Servo Control

MOQ : 1

Price : Individual quotation according to different requirements

Brand Name : Peiyu

Model Number : Customized

Certification : CE,ISO9001:2008,High-tech enterprise

Place of Origin : China

Payment Terms : L/C,T/T

Supply Ability : 30 pcs per month

Delivery Time : 30-40 workdays

Packaging Details : The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.

Model NO. : SPCTTB. 7215Q-2M

Automatic Grade : Automatic

Driven Type : Electric

Production Capacity : 20000 bottles per hour

Bottle Capacity : 500ml round bottle

Label Count : 2pcs

Speed : ≥20000bottle per hour

Bottle Heads : 15

Power : 22kw

Air Pressure : 0.6~0.7Mpa

Air Consumption : 200L/min

Position Method : Servo

Size : 3500*3000*2350(mm)

Weight : About 3500KG

Label Station : 2

Contact Now

RG7215Q-2M Self-adhesive labeling machine
Buyer bottle station:
1. Bottle :500ml round bottle
2. Self adhesive label :2pcs
Machine introduction
Equipment Functions:
This machine provides high-precision, efficient, and multi-functional pressure-sensitive labeling for containers in food, beverage, and daily chemical industries. It's perfect for production lines with diverse bottle shapes and frequent product upgrades.
Core Technologies:
1. Fully integrated servo control (bottle holder, labeling station, conveyor, and main machine) for seamless operation.
2. Features like auto label splicing, one-touch formula switching, touchscreen interface, safety doors, anti-static, and centralized lubrication.
The RG7215Q series ensures high precision, speed, and stability with advanced design and manufacturing.
3. The RG7215Q series ensures high precision, speed, and stability with advanced design and manufacturing.
Automatic Self-Adhesive Labeling Machine for Round and Square Bottles with 20000 Bottles per Hour Capacity and Fully Integrated Servo Control
Automatic Self-Adhesive Labeling Machine for Round and Square Bottles with 20000 Bottles per Hour Capacity and Fully Integrated Servo Control
Equipment advantage: The RG7215Q-2M full-servo pressure-sensitive labeling machine :
1) Multi-domain collaborative motion control architecture with EtherCAT bus topology integration
2) The system utilizes μs-level Time-Sensitive Networking (TSN) protocol to achieve sub-millisecond synchronization (≤1ms bus cycle) between servo drive units,photoelectric encoders, and vision modules.
Automatic Self-Adhesive Labeling Machine for Round and Square Bottles with 20000 Bottles per Hour Capacity and Fully Integrated Servo Control
Automatic Self-Adhesive Labeling Machine for Round and Square Bottles with 20000 Bottles per Hour Capacity and Fully Integrated Servo Control
Automatic Self-Adhesive Labeling Machine for Round and Square Bottles with 20000 Bottles per Hour Capacity and Fully Integrated Servo Control
1) Advanced PYRG-M High-Speed Labeling Station:


The multi-servo coordinated labeling control technology features an internal signal consistency processing mechanism. Each process of the labeling station - including label unwinding, buffering, application, and tension-controlled rewinding - is precisely regulated by corresponding sensor-servo systems. This ensures comprehensive control over label movement throughout the entire process, fundamentally enhancing labeling accuracy and stability across all transmission stages.
The machine features a rationally designed and reliably driven rotary main structure, ensuring smooth and stable operation throughout the entire system.
Automation Control: The system integrates highly automated processing programs to effectively enhance equipment intelligence and simplify operations. With alarm alerts and fault display functions, it minimizes potential safety hazards. A large color touchscreen provides comprehensive features including production counting, shift change reminders, and historical data access.
Automatic Self-Adhesive Labeling Machine for Round and Square Bottles with 20000 Bottles per Hour Capacity and Fully Integrated Servo Control
Automatic Self-Adhesive Labeling Machine for Round and Square Bottles with 20000 Bottles per Hour Capacity and Fully Integrated Servo Control
Automatic Self-Adhesive Labeling Machine for Round and Square Bottles with 20000 Bottles per Hour Capacity and Fully Integrated Servo Control


Bottle Pressing Assembly: The casting components undergo spray plastic treatment. The bottle pressing head assembly adopts a three-axis bottle positioning mechanism. The pressing shaft is manufactured using polished rods, while the pressing head utilizes high-molecular polymer materials.
Bottle Carrier Turntable Assembly: The turntable is cast and machined from aluminum alloy with stainless steel cladding. It employs an integrated servo motor for tray rotation, paired with a cooling air system to ensure long-term stable and reliable servo motor operation.
All conversion components feature quick-release structures for easy installation and removal.
Machine No.
SPCTTB.7215Q-2M
Speed
≥20000bottle per hour
Bottle heads
15
Power
22kw
Label station
2
Air pressrue
0.6~0.7Mpa
Position method
Servo
Air consumption
200L/min
Bottle
Round
Size(L*W*H)
3500*3000*2350(mm)
Label count
Self-adhesive label 2pcs
Weight
About 3500KG
Design parameter
7215


Name
Brand
Name
Brand
Color sensor
SICK(Gr)
Touch screen
SCHNEIDERGermany
Photoelectricity
SICK(Gr)
Low-voltage electricals
SCHNEIDERGermany
PLC
inovance
Motor reducing gear
EVERGEAR/NESTART/BEST CHINA
Servo motor
inovance
Pneumatic components
SMC/FESTO
Frequency converter
inovance


After Sales Service
Standard Warranty: 12 months
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Company Profile
Automatic Self-Adhesive Labeling Machine for Round and Square Bottles with 20000 Bottles per Hour Capacity and Fully Integrated Servo Control
Company profile:
Peiyu Enterprise wholly-owned below companies: Shanghai Peiyu Packaging technology Co, ltd, Anhui Peiyu Packaging technology Co,ltd.

Through our long-term accumulated mechanical design and manufacturing experience, we currently have hundreds of mature and stable packaging machinery and equipment, including retorts, palletizer&depalletizer, loading& unloading machine, case packer,labeling machine, conveyor system etc. Peiyu'S intelligent machinery are mainly applied to food&beverage industry, condiment industry, wine industry, pharma, medical industry. We work together with Yili Group, Lulu Group, Weiwei Group, Hebei Y angyuan Company, Wong Lo Kat Group, Mengniu Group, Southern Black Seasame Group, Baoyin Can of Baosteel, Yinlu Chengdu, Yanghe Group, Bencao Heze, Jinyi Jilin, Zilin Vinegar, Jiyuan Youyang, UniPresident Enterprises, Ting Hsin Group, huapeng International Group Limited, Huiyuan Group,Unilever, Zhongya Hangzhou, Harbin Pharmaceutical Group, Qidu Pharmaceutical and many other famous enterprises. Also our products are exported to many foreign countries in North America, South America, Africa, Europe and the Middle East and maintain a high reputation in the market. We gain the title of "outstanding supplier " with our high quality products and services.

Peiyu establishes R&D centers in Xi an, Shanghai,Chuzhou,Continuously providing our clients with advanced technology.With the fomal production of our new manufacturing base 60,000m in Chuzhou,modern factory building, research and development center, processing center, testing center, assembly workshop, spare parts warehouse, office building,residential facilities, etc. Processing workshops is equiped Germany trulaser laser cutting machine, Plasma cutting equipment, HT Hision five surface machining center. American HAAS CNC, Laser cutting machine etc; for equipment manufacturing precision and stability provide a highly reliable guarantee. Peiyu strictly conforms to the ISO9001 quality management system to monitor the whole production process. We have also passed T V Certificate and CE Certificate. Peiyu adheres to the sustainable services and continuously pursues new business philosophy to make the most competitive intelligent equipments.
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 90 days; customized units require 120 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
